SuperAVRcore [softcore]
Freq core fino a 150Mhz - Versione stabile 75Mhz
75 True Mips
128K di memoria programma
64K di memoria ram con protezione Hamming
5 porte I/O 8bit PA,PB,PC,PD,PE
1 UART 100% AVR compatibile
1 Timer 16bit
1 Timer 8bit
1 Ingresso ICP
2 Ingressi T0 e T1
1 Uscita Fast PWM 10bit - 40Khz
1 I2C - 100 / 400 Khz
1 SPI - 10Mbit
2 Interrupts esterni Int0 e Int1
Compatibilità 100% firmware scritto in BASCOM-AVR, AVRStudio - WinAVR e Wiring.
|
|
 |

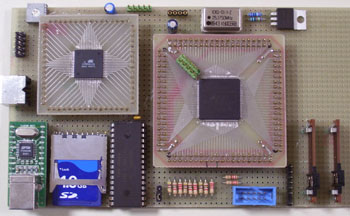

DAB-1C6 Data Acquisition Board
CPU ATmega128 / ATmega256
FPGA EP1C6T144
1MB Sram
64 Fast Digital I/O
32 Slow Digital I/O
Interfaccia J-Tag
Interfacce SPI, RS232, I2C
|
|
 |

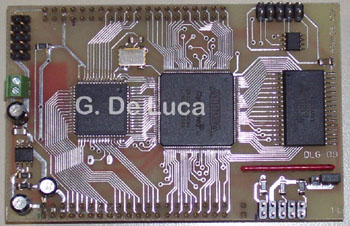

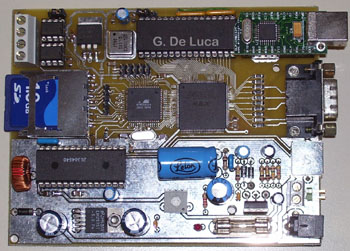

FPGA Basic uComputer
CPU ATmega128 / ATmega256
CPLD EPM3256
1MB Sram
Speech Synthetizer
VGA 640x480x256C
5W Audio ouput
4GB SD-Card
Interfacce ModBus, USB, PS2 mouse o KB
|
|
 |

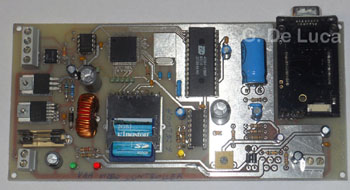

VGA video controller
CPU ATmega256
FPGA EP1C6
1MB Sram
Speech Synthetizer
VGA 620x420x256C
5W Audio ouput
4GB SD-Card
Interfaccia ModBus Rs485
|
|
 |

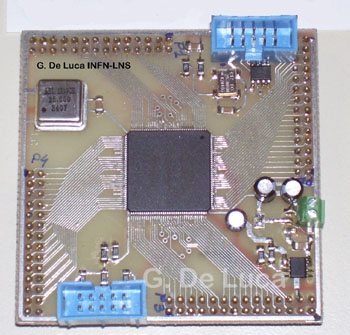

Cyclone EP1C6 demo board
|
|
 |
MAX EPM325 - CPLD Development Board for video applications
CPU ATmega128
CPLD EPM3256
1MB Sram
1GB SD-Card
Interfacce USB, PS2
VGA 680x480x256C
|
|
 |

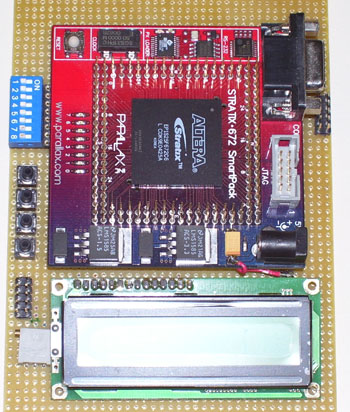

STRATIX EP1S25 - SOC System - Development Board
|
|
 |

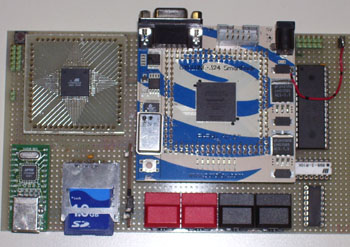

Cyclone EP1C20 - Development Board (proto)
CPU ATmega128
FPGA EP1C20
1MB Sram
1GB SD-Card
Interfacce USB, PS2
VGA 680x480x256C
|
